Electro-Voice ZLX-12 G2 Passive 12″ Speaker 1000W
EVL-ZLX-12-G2
New
ZLX G2 is the second generation of the phenomenally successful ZLX series of portable loudspeakers. Building on the best of what made the original ZLX series an industry icon, the ZLX G2 lineup offers a range of next-level features and functionality.
Electro-Voice ZLX-12 G2 Passive 12″ 2-Way Loudspeaker – 1000W
When Electro-Voice launched the first-generation ZLX series in 2013, the goal was clear — to deliver real pro-audio performance at an affordable price. Musicians and engineers around the world quickly took notice. The ZLX line soon became known for its consistent sound quality and everyday reliability, setting a new benchmark in its class.
More than a million ZLX units later, the new ZLX G2 continues that success story. It marks the entry point into the Electro-Voice portable loudspeaker range and improves on the original with higher maximum SPL, wider frequency response, and greater durability. Ergonomic upgrades also make setup and transport easier than ever.
Superior Engineering, Superior Sound
ZLX-12 G2 builds on the audio quality that made the original series so popular. Its increased SPL and premium internal components deliver powerful, clear sound for both live and installed applications.
Each model uses a woofer and compression driver coupled through Electro-Voice’s patented SST (Signal Synchronized Transducers) ported waveguide. This design extends low-frequency response and maintains smooth coverage across both vertical and horizontal planes — all in a compact enclosure. The result is a punchy, balanced sound worthy of the Electro-Voice name.

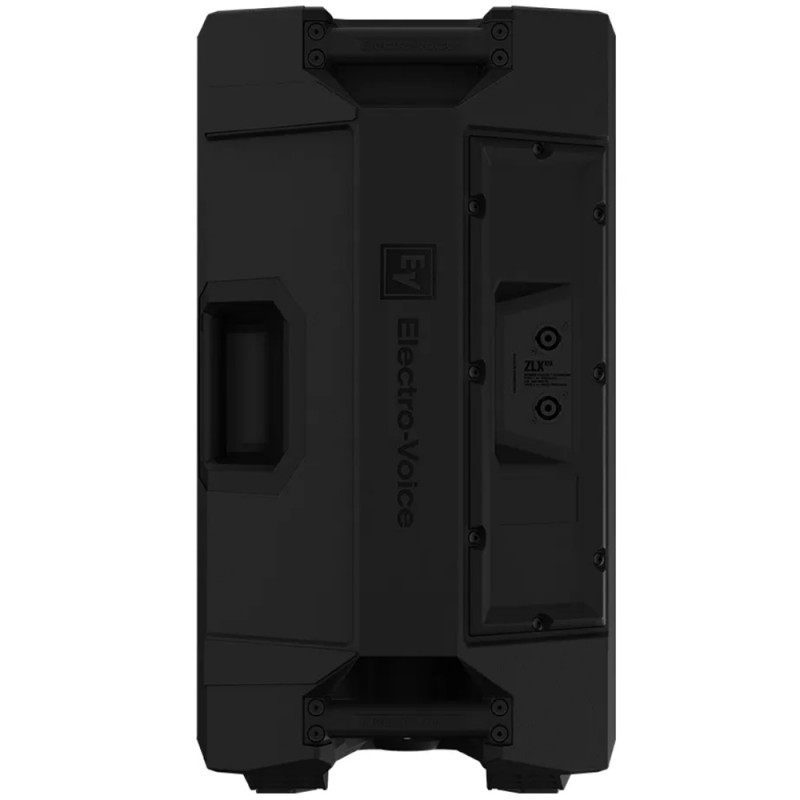

The passive version connects via standard NL4 sockets, wired in parallel to pass all pins. For best results, pair it with a Dynacord DSP amplifier using the official Electro-Voice speaker settings from the SONICUE Sound System Software database.
Form And Function Redefined
Electro-Voice redesigned every part of the enclosure for strength and usability. The cabinet, made from rugged polypropylene, features a new structural “spine” and an embossed EV logo.

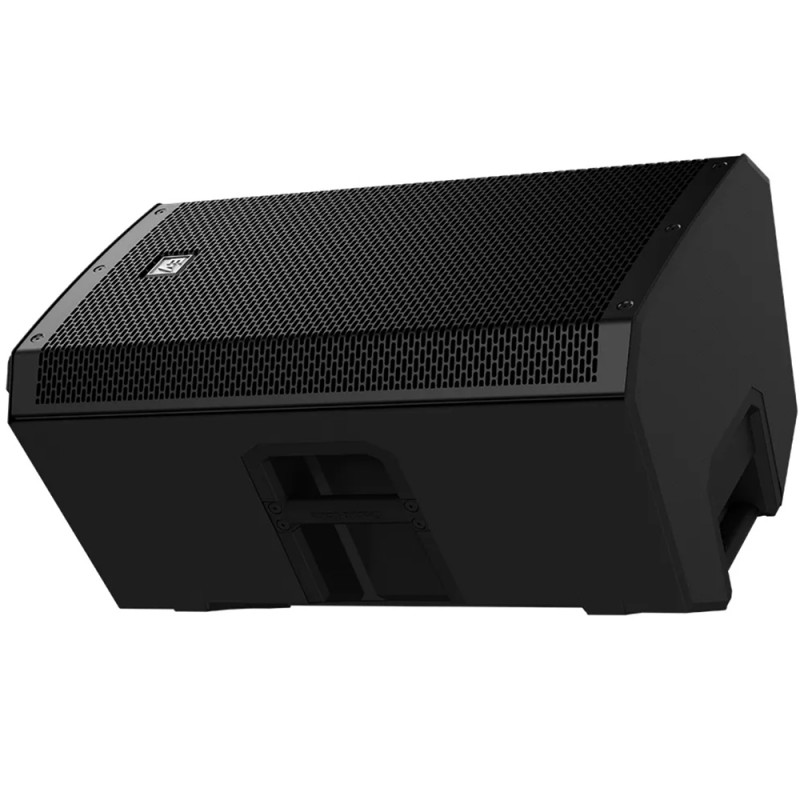

Its symmetrical 55° sides let performers place the speaker as a floor monitor with a steeper listening angle for better on-stage clarity. A built-in 23° kick-back angle allows upward projection when used vertically. When placed directly on a subwoofer, the enclosure now faces straight forward without needing a pole mount.
Multiple mounting accessories expand flexibility. A U-style wall bracket supports vertical or horizontal installation. Long-arm pole-mount brackets allow tilt adjustment for the 12″ and 15″ models, while a short-arm version suits the 8″ model. Protective slipcovers are also available for all sizes.
Perfect For A Wide Range Of Installations And Applications
In addition to portable sound for live performances and events, compact size with big performance and a range of user-friendly mounting options make ZLX G2 a great fit for installation in bars, restaurants, clubs, houses of worship, and many more applications
ZLX-12 G2 Key Highlights:
- Building on the success of the original ZLX series, ZLX G2 delivers enhanced output, frequency range, durability, and connectivity.
- New features include remote control, mixing, and stereo streaming, catering to diverse user needs.
- Designed for DJs, musicians, rental companies, fitness instructors and more.
Frequency response (-3 dB) (Hz): 69 Hz – 18,500 Hz
Frequency range (-10 dB) (Hz): 55 Hz – 20,000 Hz
Maximum sound pressure level at a distance of 1 m (dB): 125 dB
Coverage angle HxV (°): 90° x 60°
Crossover frequency (kHz): 2 kHz
Power handling (continuous) (W): 250 W
Power handling (peak) (W): 1,000 W
LF transducer: WECA2128
LF transducer size (in): 12 in
LF transducer magnet material: Ferrite
HF transducer: DH-1K
HF transducer type: Compression driver
HF transducer size (in): 1.4 in
HF transducer diaphragm material: Titanium
Dimensions (H x W x D) (mm): 621.1 mm x 356.2 mm x 356 mm
Dimensions (H x W x D) (in): 24.45 in x 14.02 in x 14.01 in
Shipping dimensions (H x W x D) (mm): 670 mm x 420 mm x 405 mm
Shipping dimensions (H x W x D) (in): 26.38 in x 16.54 in x 15.94 in
Weight (kg): 14.26 kg
Weight (lb): 31.44 lb
Shipping weight (kg): 16.26 kg
Shipping weight (lb): 35.85 lb
